Text Messages and Transducers

By Teresa Atwill

Sentry Team preparing for the dive.
The autonomous underwater vehicle (AUV) Sentry is going to start its second mission of our research cruise today. Right now Sentry is getting it’s batteries topped off and the AUV’s programmer and lead engineer are converting the chief scientist’s “way points” (latitude and longitude locations) into a set of instructions telling Sentry to do things like head east 1.2 kilometers and then drop to 65 meters above the sea floor and turn on its multibeam sonar.

Sentry starts a dive with a pre-programmed series of distance (range) and direction (bearing) instructions that it will follow and will take it far from the ship (about 10 km or 6 miles) during which Sentry will record very precise (within 10 cm elevation) multibeam sonar bathymetric data with a horizontal resolution of ~1 meter. Every 6 hours or so Sentry must come back within acoustic range of the ship to text message with the Sentry team through a transducer (acoustic modem) on the bottom of the ship and communicate things like how much battery power remains and how Sentry’s other systems are working. The Sentry team can also send Sentry a text message to tell it to offset its track slightly to compensate for any navigational drift that has occurred during its travels alone in the ocean.

Image of an actual live Sentry track screen. Red lines have been confirmed to have run. Green lines are the rest of the set track.


The final result of the Sentry missions on our research cruise will be high-resolution bathymetric maps that will be used to measure any changes in elevation of the sea floor by comparing this summer’s measurements with those from previous years. These changes in the sea floor are primarily due to subsurface magma movement inside Axial volcano.




Chief Scientist Bill Chadwick discussing Sentry navigation:

video

Most people who use Sentry to survey in a “mow the lawn” pattern to create bathymetric maps of previously unmapped areas. In contrast, on this cruise we want to measure deformation of the volcano by repeating previously mapped survey lines to look for changes in seafloor elevation. We also want to do these repeat surveys over a large area to reveal the spatial extent of the deformation. Most people map assuming the sea floor topography will never change (which is true in most areas), but here at an active volcano, the seafloor moves up and down as magma moves in and out of Axial Seamount. Comparison of these surveys from year to year allows us to measure deformation at the volcano as it inflates and deflates over time. This process of comparing high resolution AUV multibeam data in order to determine volcanic deformation on the sea floor was developed by the scientists on our cruise in collaboration with scientists at MBARI (Monterey Bay Aquarium Research Institute).
video


Before developing this method with the AUV data, pressure measurements (for inflation and deflation) were only at specific points but Sentry gives us information over a much greater area. On the other hand, these AUV measurement comparisons are not as precise as our pressure measurements (more about those in a later post), so it is good to have both kinds of data when developing our models for the volcanic activity at Axial.

Sentry Navigation

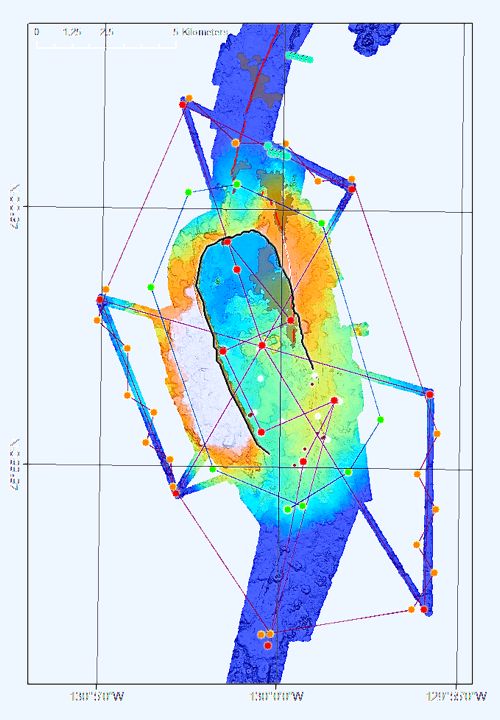

Map of Axial showing the waypoints for measuring deformation.
For Sentry navigation to be at its best we would need to keep the ship close to Sentry at all times. That way we could use the GPS coordinates of the ship to keep communicating with Sentry about its location on the seafloor. As Sentry moves through the water it uses a down-looking Doppler sonar to tell it how fast it is moving by measuring the phase shift of sonar pings off the sea floor. The farther Sentry goes away from the ship the more this method of navigation drifts. We are trying to repeat surveys that were done in previous years, so we need fairly accurate navigation for Sentry. We are using Jason at the same time, so we can’t always follow Sentry around. When Sentry is out of acoustic range of the ship we can’t tell it where it is, therefore we design our surveys to return Sentry to where the ship is working every 6 hours or so during a 24-hour dive.

In the end we’ll be able to determine how much the seafloor has risen since the last AUV survey a year ago and what that can tell us about how magma is supplied and stored inside the volcano. We know that Axial is already building to its next eruption and this information will help us forecast when that is likely to occur.
